Economic Lifting Stations

Above ground installation for wastewater without sewage

Packed with technology for free-standing installation the new Aqualift S 100 & S 200 lifting stations provide economic solutions for wastewater without sewage.

Available as Mono and Duo system versions in the S100 and Duo system versions in the S200, they can also be upgraded from existing Mono to Duo or from existing 650 W pump to 1300 W pump. The pumps are acoustically isolated to prevent structure-borne sound, which reduces operational noise. An additional sound absorption mat is included as a standard feature.

When installed after grease separators, the Aqualift S interior inlets can be used as norm approved sampling chambers. A separate, conventional sampling chamber is no longer required.

How it works

Features

Different tank sizes with effective pump volumes from 25 l to 100 litre.

Odour-tight and tool-free cover opening with one-handed closure.

Powerful pumps with 650 W or 1300 W with multi-vane impeller.

Compact tanks, for use in existing pump sumps.

Reliable with Tronic control unit (Duo versions) giving precise measurement of the wastewater level and intelligent pressure control via Comfort control unit with self-diagnostics system.

One-handed closure for fast and easy handling of the pump and backflow preventer – no tools needed.

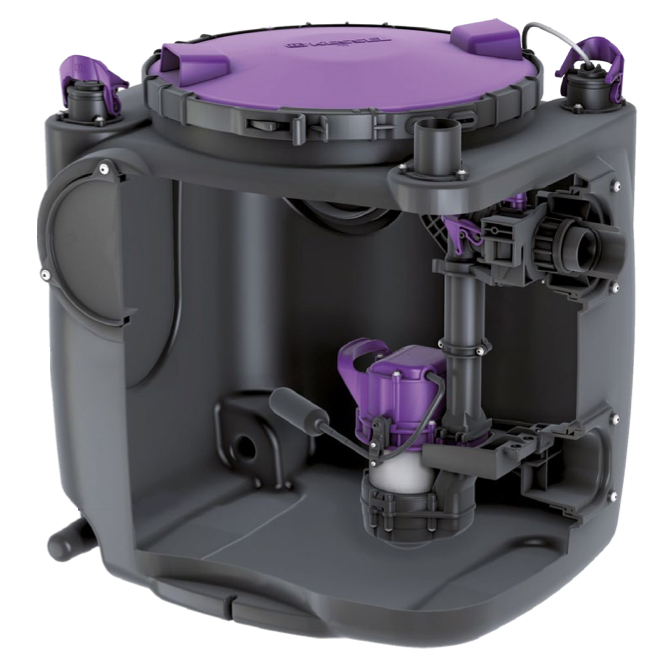

Aqualift S100

For free-standing installation and wastewater without sewage

Lifting station for faecal-free wastewater, free-standing set-up, preassembled for final installation on site.

  • Mono or duo version
  • With odour-tight cover and quick-release closure for easy maintenance
  • Tank made of PE, resistant to aggressive wastewater
  • Includes back-flow preventer for the pressure pipe
  • Includes socket Ø 110 mm for inlet and sampling
  • Pump(s) with multi-vane impeller for maximum operating reliability
PUMP TYPE
Voltage
Amperage
Power (P1/P2)
Pumping Capacity
Pumping Height
GTF 600-S1 230 V 2.9 A 0.65 kW / 0.4 kW 12 m³/h max 8 m
GTF 1250-S3 230 V 5.4 A 1.3 kW / 0.8 kW 20 m³/h max 11 m

Aqualift S200

For free-standing installation and wastewater without sewage

Lifting station for faecal-free wastewater, free-standing set-up, preassembled for final installation on site.

  • Duo version only
  • With odour-tight cover and quick-release closure for easy maintenance
  • Tank made of PE, resistant to aggressive wastewater
  • Includes back-flow preventer for the pressure pipe
  • Includes socket Ø 110 mm for inlet and sampling
  • Pump(s) with multi-vane impeller for maximum operating reliability
PUMP TYPE
Voltage
Amperage
Power (P1/P2)
Pumping Capacity
Pumping Height
GTF 600-S1 230 V 2.9 A 0.65 kW / 0.4 kW 12 m³/h max 8 m
GTF 1250-S3 230 V 5.4 A 1.3 kW / 0.8 kW 20 m³/h max 11 m
