Economic Pumping Stations

Underground installation for wastewater with or without sewage

The pumping stations Aqualift F Basic and Aqualift S Basic are the most modern entry level wastewater lifting stations on the market. Complete with a heavy duty chamber, new to market pumps and tool-free quick release connections only available at KESSEL – making the choice is now simple. Choose cutting-edge technology at an unbeatable price.

The pumping station Aqualift F Basic and Aqualift S Basic are available either as single pump Mono or a twin pump Duo systems. All models are float switch controlled and Tronic versions are equipped with a control unit.

Tool free maintenance with quick release connections.

How it Works

Features

100% waterproof and odour tight cover.

Vertically adjustable upper section (accessory).

3 Drilling surfaces for inlet up to Ø 160 mm, ventilation, and cable conduit.

Tool-free maintenance.

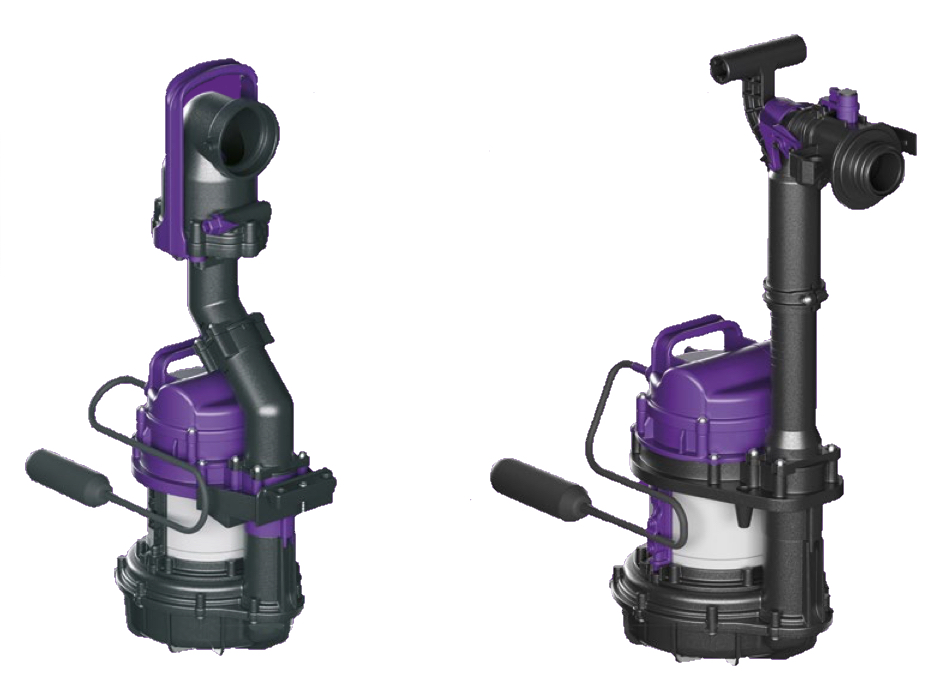

Vortex impeller.

Aqualift F Basic: Mono or Duo STF 1300 pumps with 40 mm free passage.

Aqualift S Basic: Mono or Duo GTF 600 or GTF 1250 pumps with 30 mm free passage.

Aqualift F Basic

For wastewater with or without sewage

Pump volume: 25 liters (Mono) / 60 liters (Tronic / Duo)

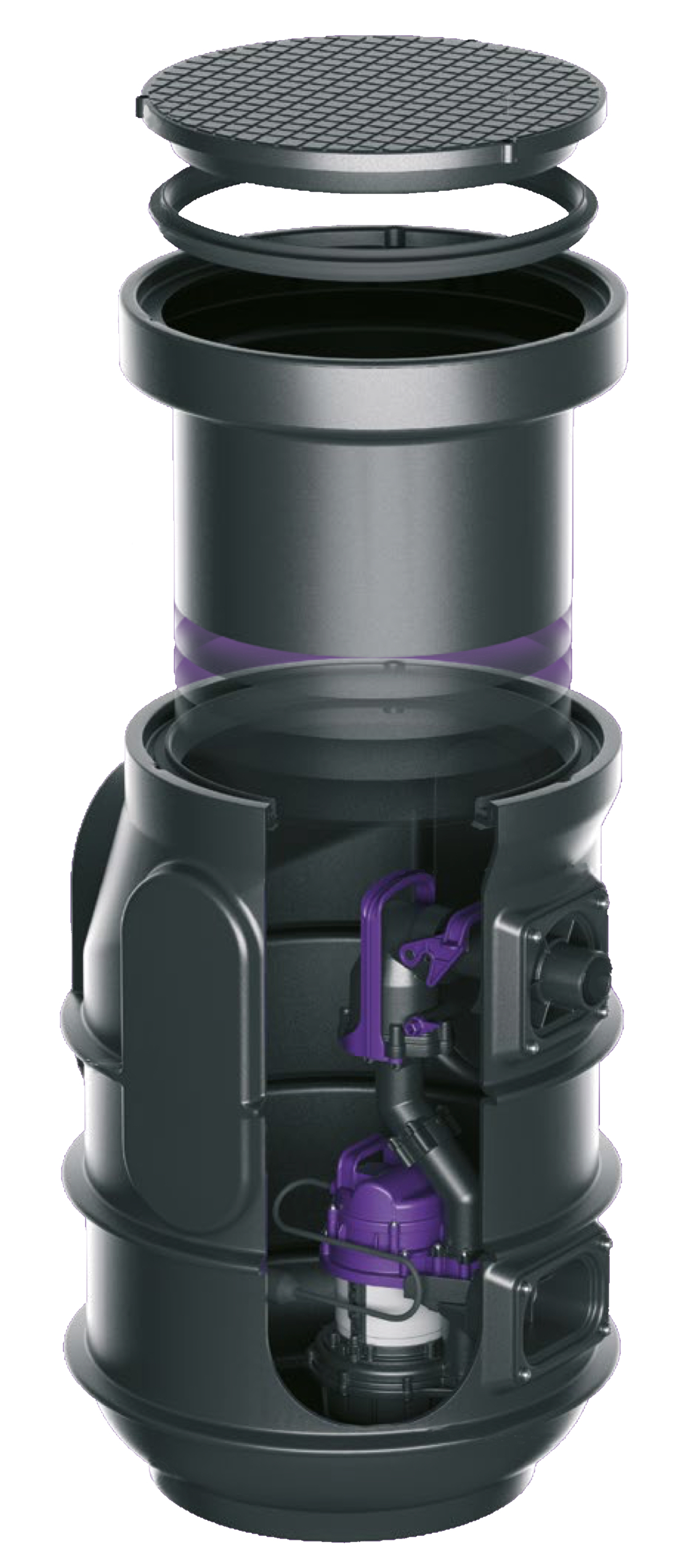

Polyethylene storage chamber for underground installation. Float switch controlled single or twin removable wastewater pump(s) with multi-vane vortex impeller for wastewater with or without sewage. Pump(s) is rated submersible (IP 68). Tronic versions include Basic control unit with self-diagnosis system (SDS) and battery buffering, control unit is splash proof (IP 54).

PUMP TYPE
Voltage
Amperage
Power (P1/P2)
Pumping Capacity
Pumping Height
CSTF 1300-S3-50% 230 V 6 A 1.3 kW / 0.8 kW 21 m³/h max 10 m

Aqualift S Basic

For wastewater without sewage

Pump volume: 20 liters (Mono) / 60 liters (Tronic / Duo)

Polyethylene storage chamber for underground installation. Float switch controlled single or twin removable wastewater pump(s) with multi-vane vortex impeller for wastewater with or without sewage. Pump(s) is rated submersible (IP 68). Tronic versions include Basic control unit with self-diagnosis system (SDS) and battery buffering, control unit is splash proof (IP 54).

PUMP TYPE
Voltage
Amperage
Power (P1/P2)
Pumping Capacity
Pumping Height
GTF 600-S1 230 V 2.9 A 0.65 kW / 0.4 kW 12 m³/h max 8 m
GTF 1250-S1 230 V 5.4 A 1.3 kW / 0.8 kW 20 m³/h max 11 m
