Grease Boss EasyClean™

Underbench Automatic Grease Removal

The Mactrap Grease Boss EasyClean is designed with low cost, low maintenance, restricted kitchen space, and high performance in mind.

The Grease Boss EasyClean is an electromechanical Grease Removal Unit, removing fat, oil and grease (FOG) from greasy water. It incorporates a self-wash and pump out cycle to keep the appliance cleaner and help reduce annual servicing costs.

Greasy water enters through a removable filter basket which captures solids. FOG is extracted from the greasy water periodically throughout the day. Hot water jets push the FOG towards the roller and the FOG is extracted into a disposable container (such as a plastic milk bottle) for removal with rubbish collection.

After the FOG is extracted from the greasy water, the tank is partially drained to help remove residual solids. The hot water jets then clean the sides of the tank. Another hot water jet washes the roller, the blade and the FOG chute. The result is a cleaner appliance, operating continuously with very low maintenance.

The Grease Boss EasyClean range has been independently tested and complies with NZBC G13 and is accepted for installation by all Local Government Authorities.
The pump out function reduces sediment build up
Self-cleaning reduces annual servicing costs
Compact design fits in restricted kitchen space

Features



Self cleaning¹.



No chemicals.



Less space.



Easy waste disposal.



Sealed lid to prevent odours.



Can accept dishwasher inflow².



Combi oven options available.



PLC controlled with operating display. Pump out option is controlled by PLC, occurring only after the FOG extraction cycle is complete.



Front-loading filter basket located above the water level to capture solids and prevent sediment build-up within the unit. Filter basket is easily removed for daily checking and removal of any excess solids escaping the sink filter.

¹ The hot water jets reduce the build up of grease, and the pump out function reduces the build up of food sediment. These cleaning actions assist in the cleanliness of the interior of the unit but do not mitigate the necessity for regular servcices.

² Combined dishwasher and sink inflow not to exceed specified inflow rate. Dishwasher chemicals can affect FOG structure and recovery rate.

Models

Grease Boss EasyClean G5 Combi

Rated to 0.5 litres/second inflow, the G5 is specifically designed for the temperatures associated with a Combi Oven. The G5 is the only product available in New Zealand specially designed for Combi ovens where the drainage point can be as low as 200mm off the ground.

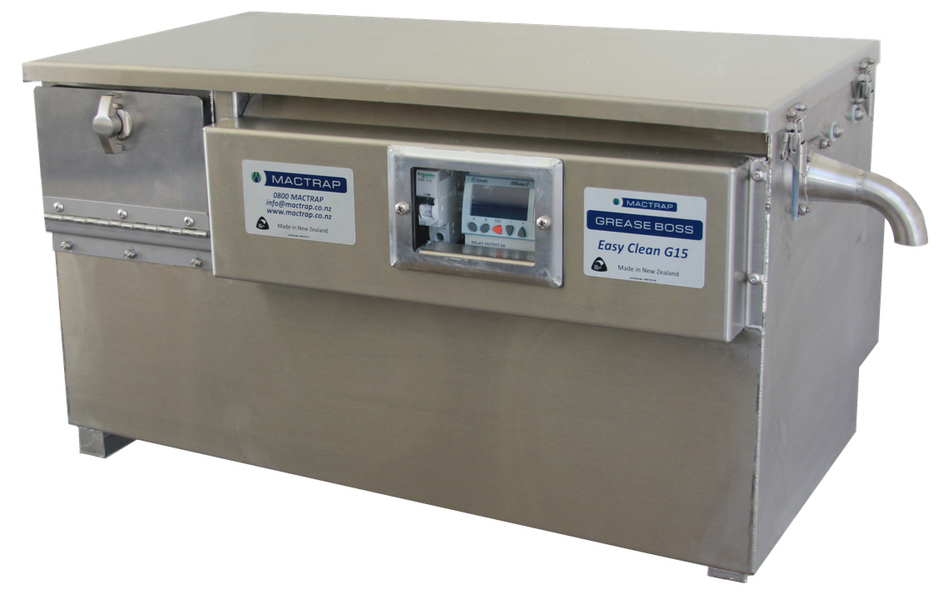

Grease Boss EasyClean G15

Rated to 1.6 litres/second inflow, the G15 is ideal for smaller kitchens, typically with a single wash sink.

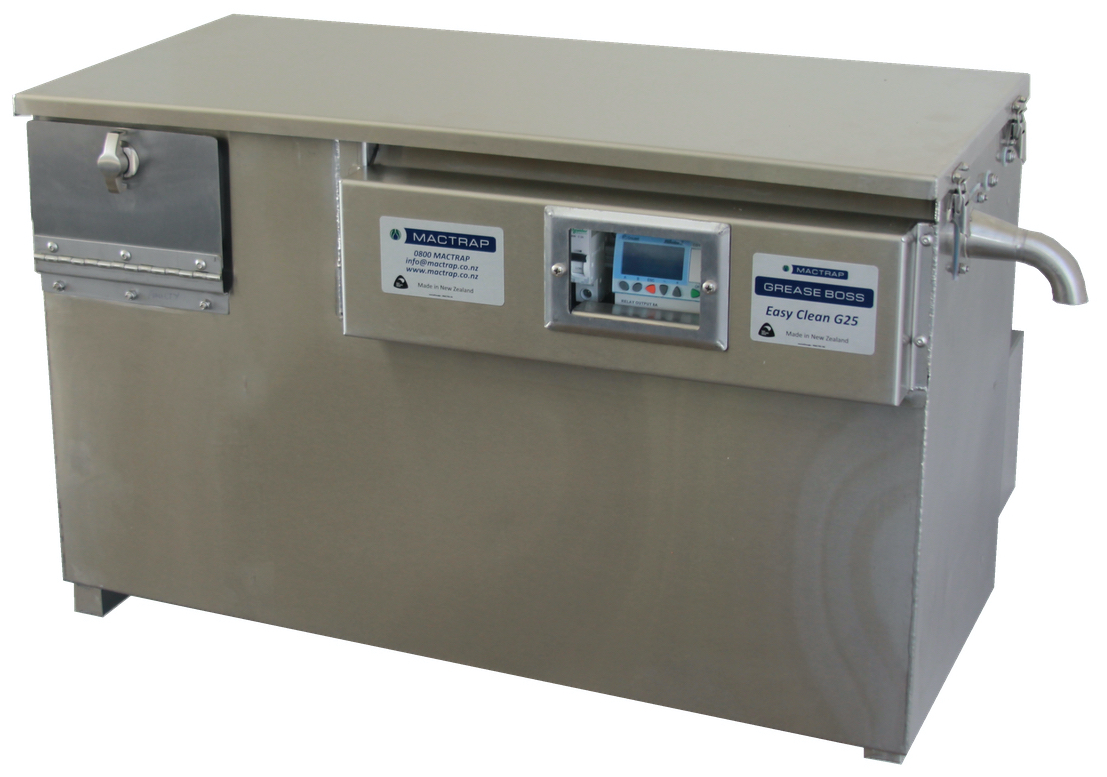

Grease Boss EasyClean G25

Rated to 2.5 litres/second inflow, the G25 is designed for larger kitchens typically with two large wash sinks.

Grease Boss EasyClean G25 Combi

Rated to 2.5 litres/second inflow, the G25 is designed for larger kitchens typically with two large wash sinks and is designed for the temperatures associated with a Combi Oven.

Dimensions

Specifications

G5
Material	304 Stainless Steel
Max Inflow Rate	<0.5 litres/second
Static Capacity	40 litres
Treatment Capacity	<150 litres
Power Supply	240 volt/10 amp
Water Supply	min 45ºC Mains Pressure
Controller	Crouzet PLC 24 hour
FOG Removal Rate	<4.56 kilograms/hour

G15
Material	304 Stainless Steel
Max Inflow Rate	<1.6 litres/second
Static Capacity	100 litres
Treatment Capacity	<390 litres
Power Supply	240 volt/10 amp
Water Supply	min 45ºC Mains Pressure
Controller	Crouzet PLC 24 hour
FOG Removal Rate	<11.6 kilograms/hour

G25
Material	304 Stainless Steel
Max Inflow Rate	<2.5 litres/second
Static Capacity	120 litres
Treatment Capacity	<490 litres
Power Supply	240 volt/10 amp
Water Supply	min 45ºC Mains Pressure
Controller	Crouzet PLC 24 hour
FOG Removal Rate	<12.5 kilograms/hour

Further Information


G5 Brochure	G5 Manual	G15 & 25 Brochure	G15 & G25 Manual	G15 & G25 Installation	Case Study
